10" Trailer Electric Brake & Coupling Kit & IQ Controller Koyo bearings.

10" ELECTRIC DRUM BRAKE KIT

WITH IQ CONTROLLER AND COUPLING KIT

With KOYO Japanese Bearings

Please note: this kit comes with no weld on brake mounts

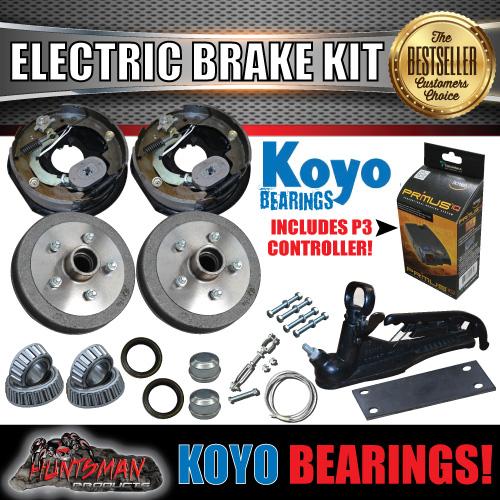

FULL KIT INCLUDES

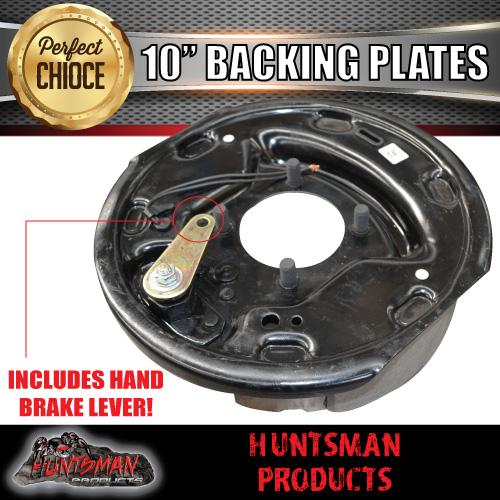

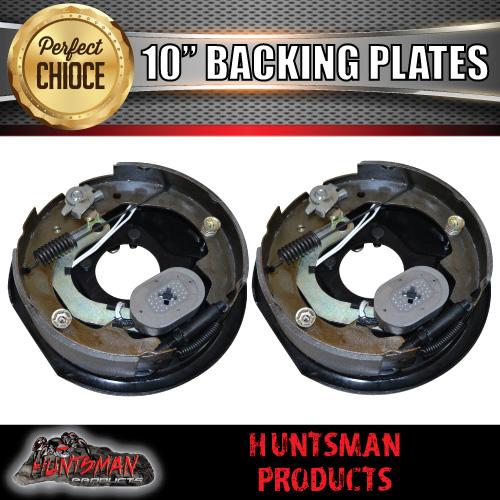

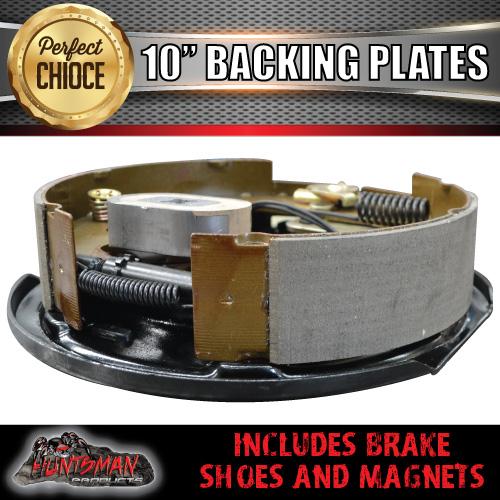

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

2X 10" HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HT OR 5 STUD HQ)

drums made from S.G casting (Much stronger than grey iron)

drums come with cups already inserted

2X JAPANESE KOYO BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

1X TEKONSHA IQ BRAKE CONTROLLER

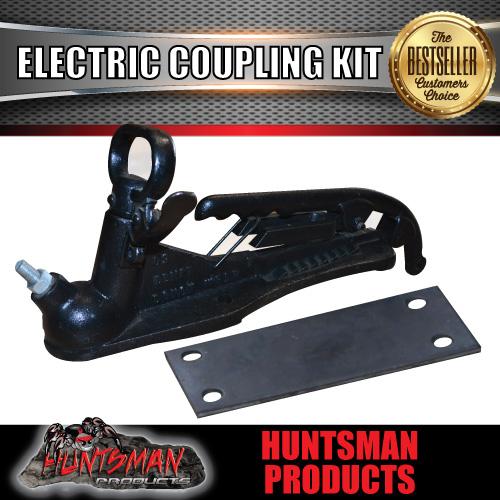

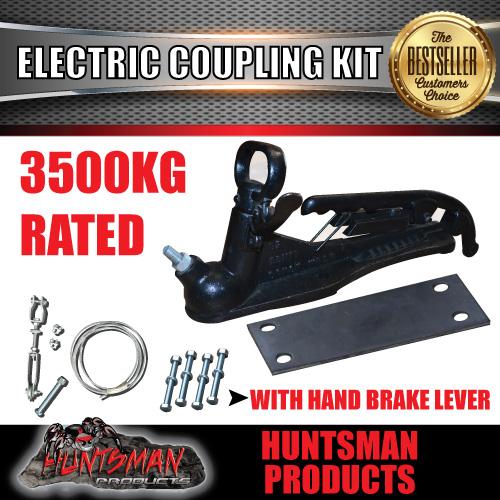

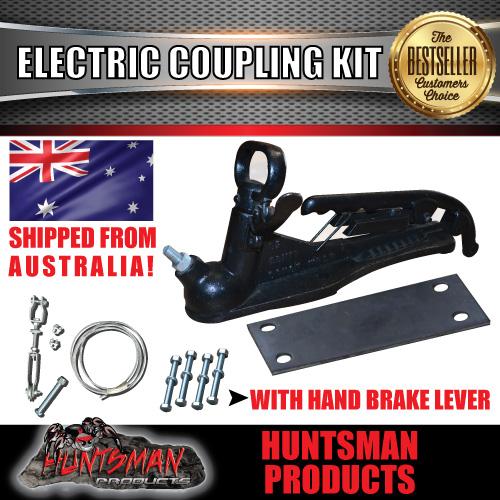

1X 3500KG ELECTRIC BALL COUPLING

4X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS

4 HOLE BASE PLATE

8M HANDBRAKE CABLE

2X CABLE CLAMPS

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):

• BEARING STYLE  (LM OR SL)
• STUD PATTERN

BEARING NUMBERS:

FOR LM (Suits standard 39mm round and 40mm square axles)

Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)

Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:

FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm

--- Stud Thickness: 1/2"

HOLDEN HT:

--- PCD: 5x108mm

--- middle of one Stud to the middle of next Stud Length:65mm

--- Stud Thickness: 7/16" Inches

COMMODORE

--- PCD: 5x120mm

--- middle of one Stud to the middle of next Stud Length: 70mm

--- Stud Thickness: 7/16" Inches

HQ

--- PCD: 5x120.65mm

--- middle of one Stud to the middle of next Stud Length: 70.3mm

--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER

--- PCD: 5x150mm

--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER

--- PCD: 6x139.7mm

--- Stud Thickness: 1/2" Inches

6 STUD D40/NP300

--- PCD: 6x114.3mm

--- Stud Thickness: 1/2" Inches
