10" 5 Stud Trailer Electric Drum Brake Kit

10" ELECTRIC DRUM BRAKE KIT

AVAILABLE TO SUIT: FORD, HT, HQ, COMMODORE & 5 STUD LANDCRUISER

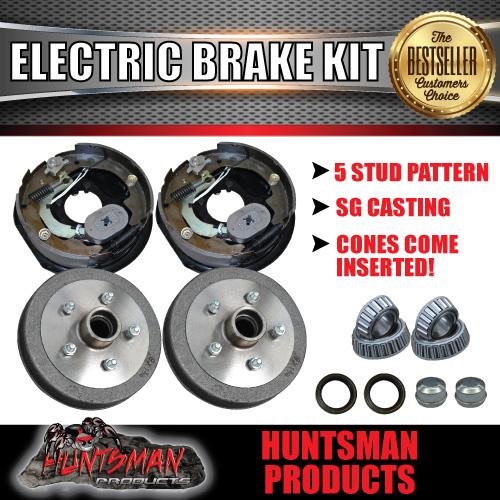

 FULL KIT INCLUDES

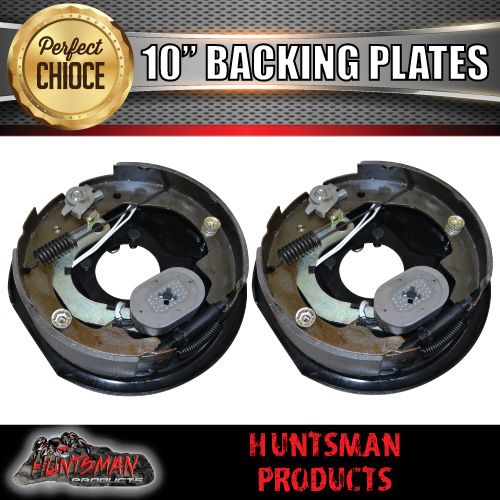

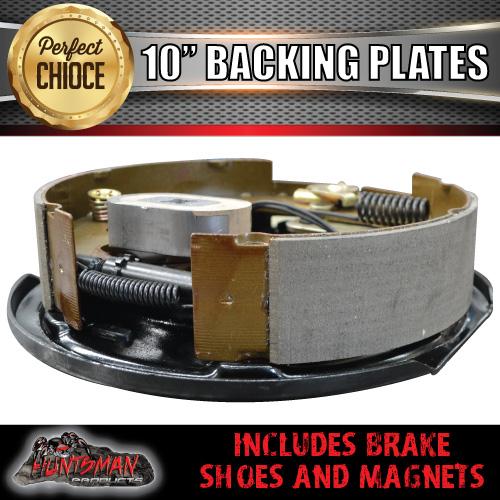

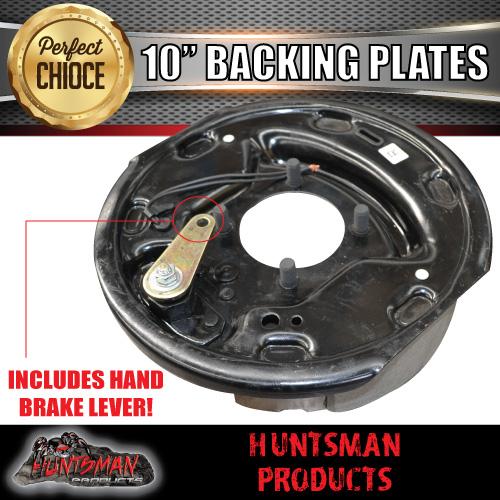

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

2X 10" HUB DRUMS (AVAILABLE TO SUIT 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ HOLDEN, 5 STUD HT HOLDEN & 5 STUD LANDCRUISER)

drums come with cups already inserted

2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage

tekonsha IQ item: 170774956808

tekonsha P3: 190635032563

BEARING OPTIONS

 UPGRADE TO JAPANESE BEARINGS $40.0

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):

• BEARING STYLE  (LM OR SL)
• STUD PATTERN

BEARING NUMBERS:

FOR LM (Suits standard 39mm round and 40mm square axles)

Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)

Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:

FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm

--- Stud Thickness: 1/2"

HOLDEN HT:

--- PCD: 5x108mm

--- middle of one Stud to the middle of next Stud Length:65mm

--- Stud Thickness: 7/16" Inches

COMMODORE

--- PCD: 5x120mm

--- middle of one Stud to the middle of next Stud Length: 70mm

--- Stud Thickness: 7/16" Inches

HQ

--- PCD: 5x120.65mm

--- middle of one Stud to the middle of next Stud Length: 70.3mm

--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER

--- PCD: 5x150mm

--- Stud Thickness: 9/16" Inches

Please note: this kit comes with no weld on brake mounts

(6 STUD KITS AVAILABLE IN OUR STORE)
