10" Natural 5 Stud Hydraulic Disc Brake Kit' + Full coupling & hyd Line kit'

HYDRAULIC DISC BRAKE, COUPLING AND FITTING KIT

SUIT FORD, COMMODORE, HQ OR HT STUD PATTERN

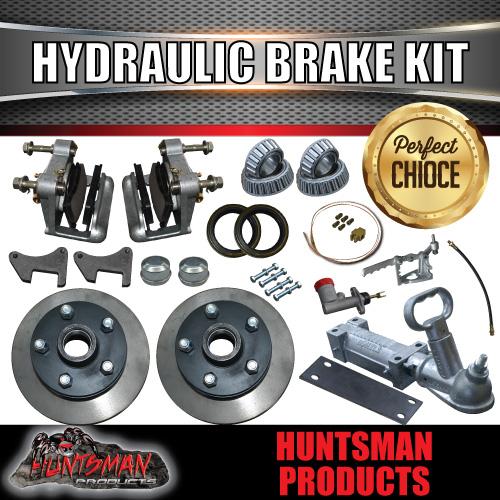

FULL BRAKE AND COUPLING  KIT INCLUDES

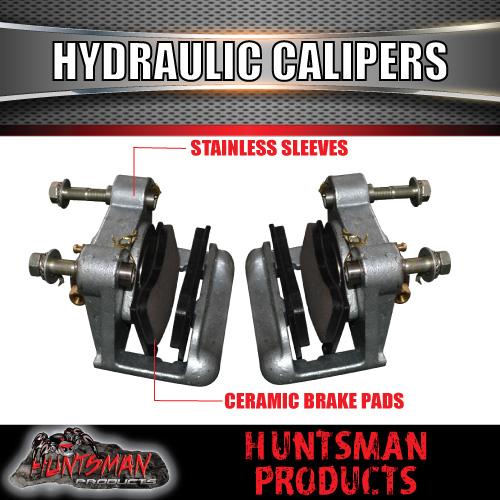

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS

4X HYDRAULIC DISC BRAKE PADS

2 X NATURAL FINISH FORD, HT HOLDEN HQ HOLDEN OR COMMODORE DISC HUBS WITH CUPS INSERTED. COMES WITH WHEEL NUTS

2X  MOUNTING PLATES WITH STAINLESS BOLTS

2 X BEARING KITS WITH STEEL SEALS

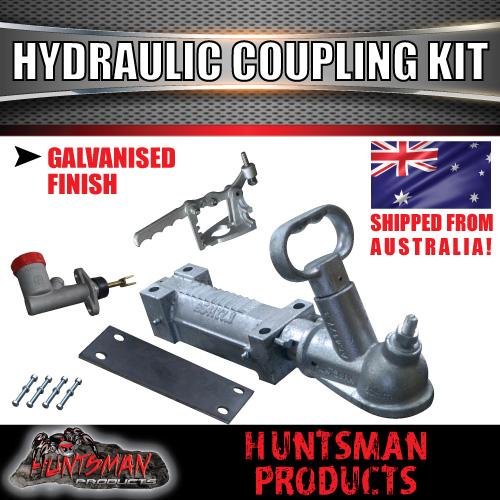

1X OVERRIDE 50mm BALL COUPLING WITH MASTER CYLINDER, BRACKET PLUS ALL MOUNTING BOLTS AND NUTS REQUIRED

1 X 4 HOLE WELD ON COUPLING BRACKET

1 X 300MM MALE/FEMALE FLEXI HOSE

1X 2500MM FLARED BUNDY LINE WITH NUTS

1X 1500MM FLARED BUNDY LINE WITH NUTS

1X 500MM FLARED BUNDY LINE WITH NUTS

1X BRASS T PIECE

1X MASTER CYLINDER NUT AND WASHER

ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING

BEARING OPTIONS

 UPGRADE TO JAPANESE BEARINGS $40.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

upgrade to the easy instillation hydraulic line setup.

12ft set up Item number: 180995030571 $55

16ft set up Item number: 180995032230 $65

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):

• BEARING STYLE  (LM OR SL)
• STUD PATTERN
• WIDTH OF AXLE

BEARING NUMBERS:

FOR LM (Suits standard 39mm round and 40mm square axles)

Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)

Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:

FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm

--- Stud Thickness: 1/2"

HOLDEN HT:

--- PCD: 5x108mm

--- middle of one Stud to the middle of next Stud Length:65mm

--- Stud Thickness: 7/16" Inches

COMMODORE

--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm

--- Stud Thickness: 7/16" Inches

HQ

--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm

--- Stud Thickness: 7/16" Inches
