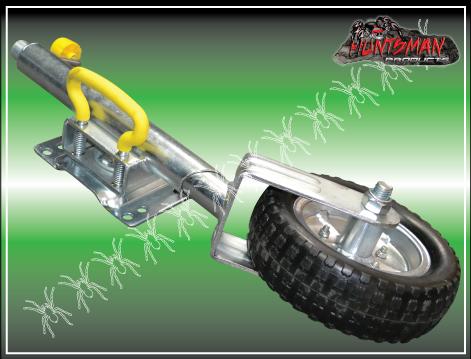

10" Swing Up Jockey Wheel & 75x50mm U bolts
Available
Details

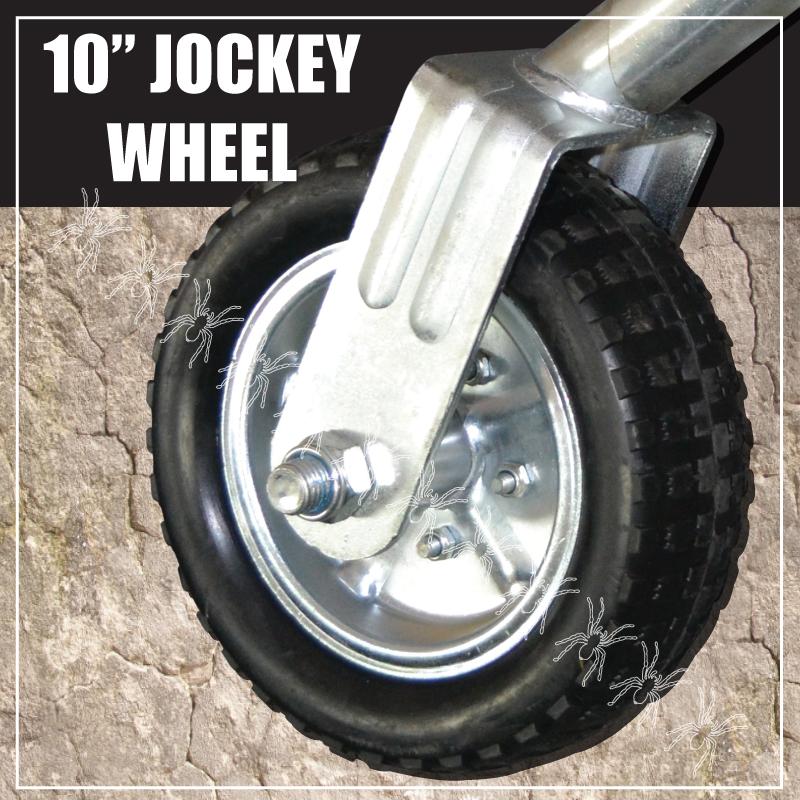

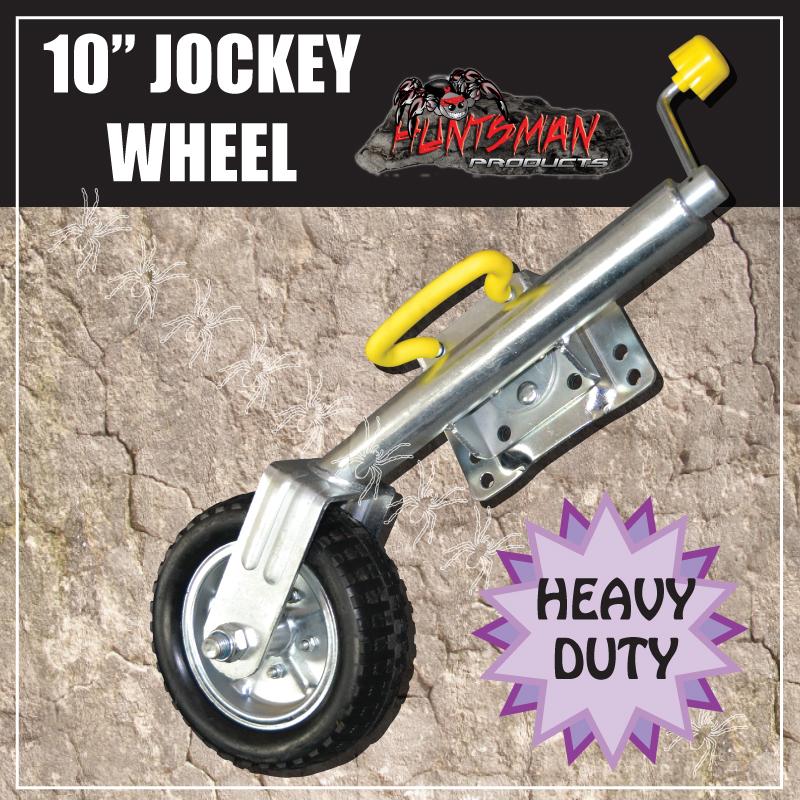

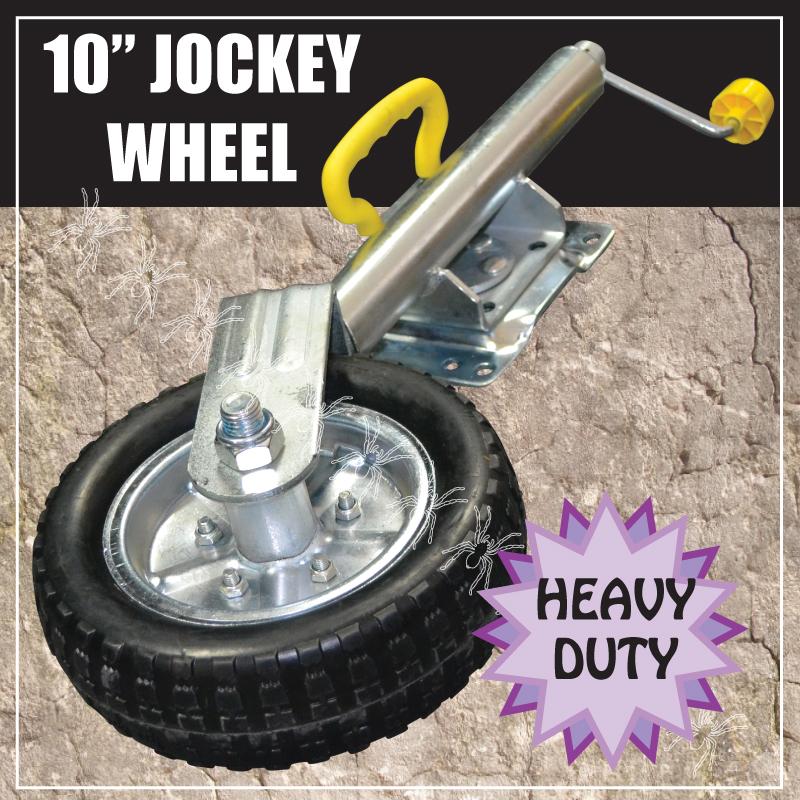

The all new Heavy Duty 10" Jockey Wheel OFF ROAD STYLE SOLID TYRE

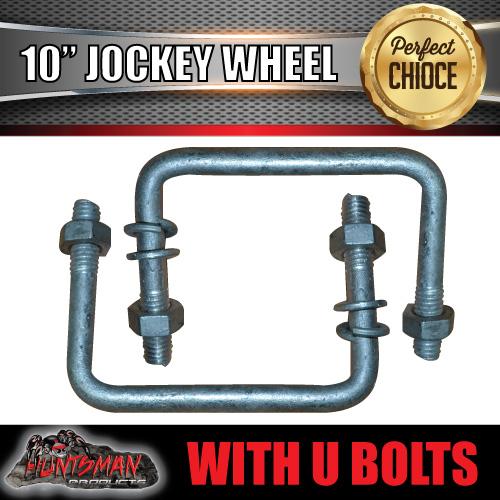

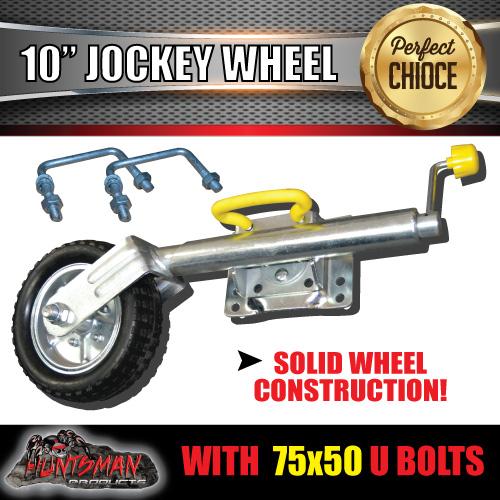

Comes with 2x U bolts to suit 75mm x 50mm Drawer Bar or A Frame

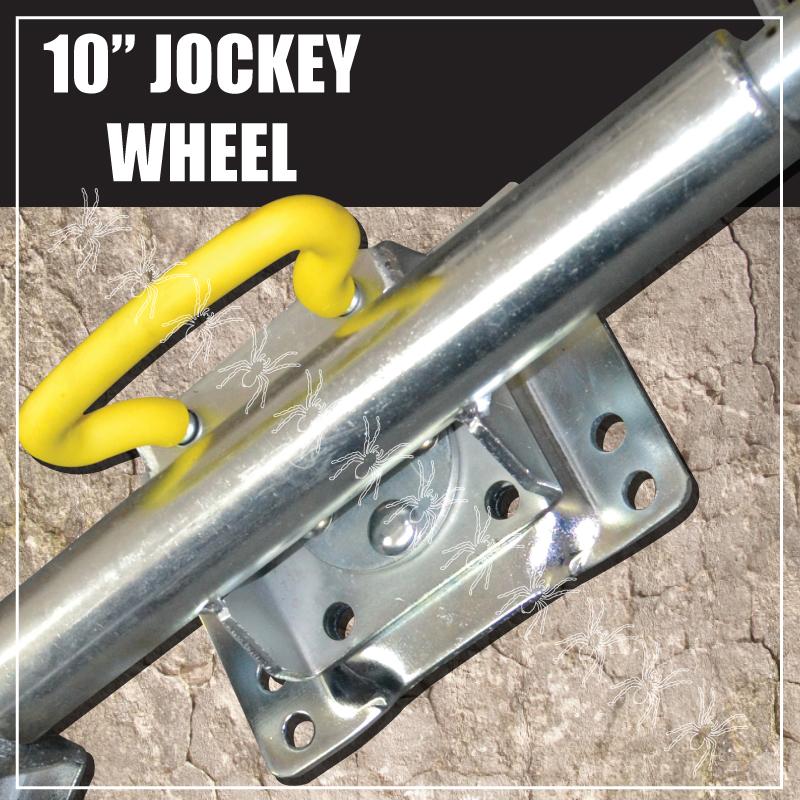

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm A- Frames)
5MM FORK
HUGE 19MM AXLE BOLT
PLASTIC HANDLE
PLASTIC HAND GRIP
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

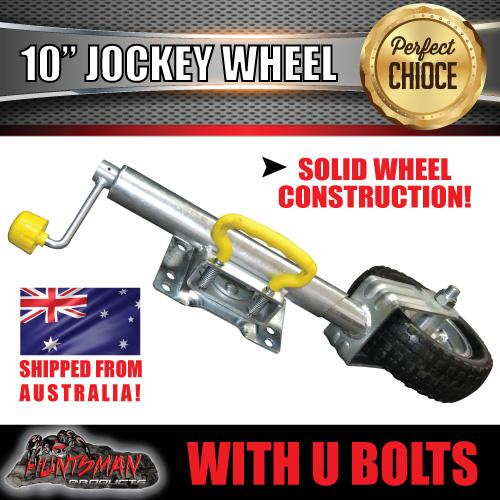

SOLID OFF ROAD TYRES
250MM EXTENSION
TYRE WIDTH: 80MM
height from centre of bracket to bottom of tyre
fully closed 420mm
fully extended 680mm
Height from middle of bracket to top of handle: 215mm
Overall Length closed: 630mm
Travel: 260mm
RATED AT 1000KG (BALL WEIGHT)

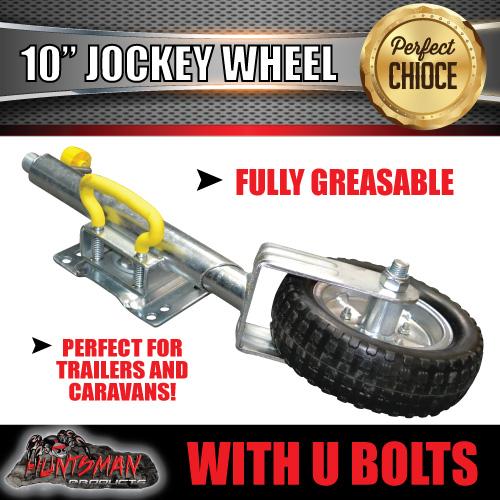

NOW FULLY GREASABLE

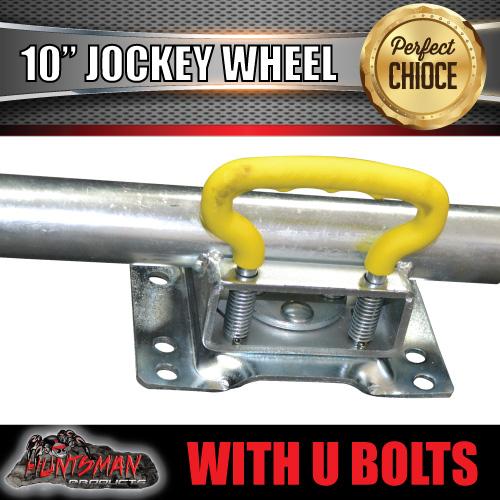

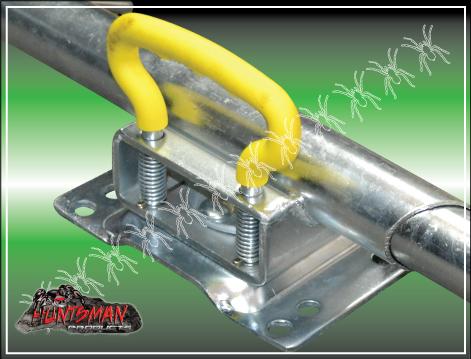

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
