10" Trailer Electric Brake Kit & 45MM Sleeve Stub Axles.

10" ELECTRIC DRUM BRAKE KIT

& 45MM X 250MM SLEEVE STUB AXLES

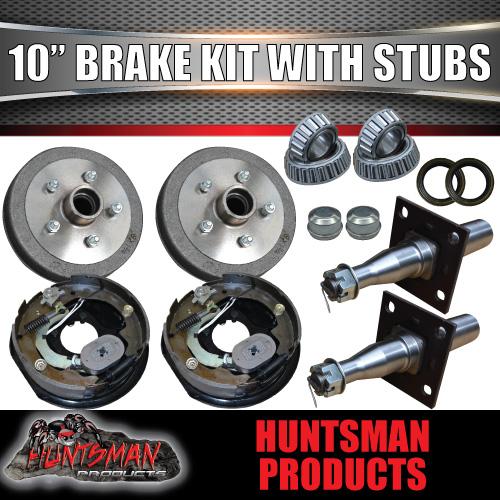

FULL KIT INCLUDES

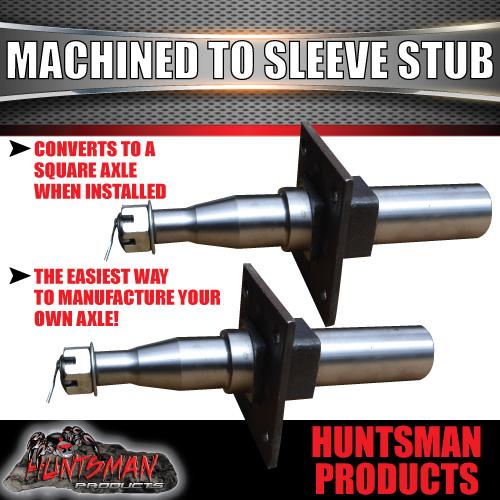

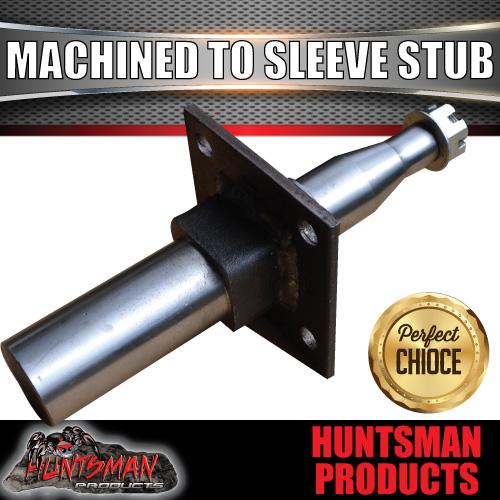

2X BRAND NEW 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50x50x5 RHS BOX SECTION

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

2X 10" HUB DRUMS (AVAILABLE IN 6 STUD LANDCRUISER OR D40, 5 STUD LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ OR 5 STUD HT)

Drums come with cups already inserted

2X S/L BEARING SETS

2X INNER BEARINGS ID:34.9MM (L68149)

2XOUTER BEARINGS ID:22MM (L12710)

2X OUTER BEARING CUPS (already inserted)

2X INNER BEARING CUPS (already inserted)

2X SLIMLINE REAR SEALS

2X DUST CAPS

If ordering an electric braked kit off us please look at our brake controllers

tekonsha IQ item: 170774956808

tekonsha P3: 190635032563

BEARING OPTIONS

UPGRADE TO JAPANESE BEARINGS $40.0

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):

• STUD PATTERN


STUD PATTERN:

FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm

--- Stud Thickness: 1/2"

HOLDEN HT:

--- PCD: 5x108mm

--- middle of one Stud to the middle of next Stud Length:65mm

--- Stud Thickness: 7/16" Inches

COMMODORE:

--- PCD: 5x120mm

--- middle of one Stud to the middle of next Stud Length: 70mm

--- Stud Thickness: 7/16" Inches

HQ:

--- PCD: 5x120.65mm

--- middle of one Stud to the middle of next Stud Length: 70.3mm

--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER:

--- PCD: 5x150mm

--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER:

--- PCD: 6x139.7mm

--- Stud Thickness: 1/2" Inches

6 STUD D40/NP300:

--- PCD: 6x114.3mm

--- Stud Thickness: 1/2" Inches
