10" Trailer Electric Brake Kit inc Coupling Kit & IQ Controller.
Available
Details

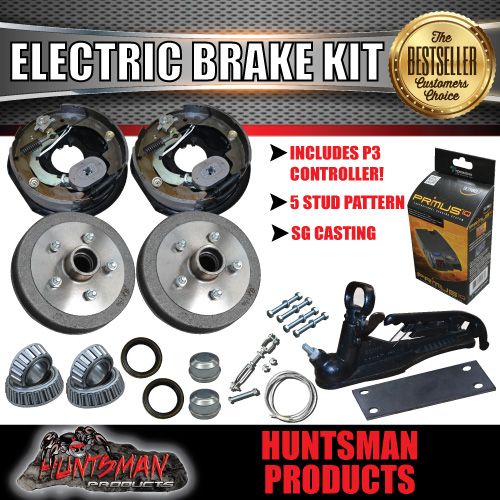

10" ELECTRIC DRUM BRAKE KIT
WITH IQ CONTROLLER AND COUPLING KIT
FULL KIT INCLUDES

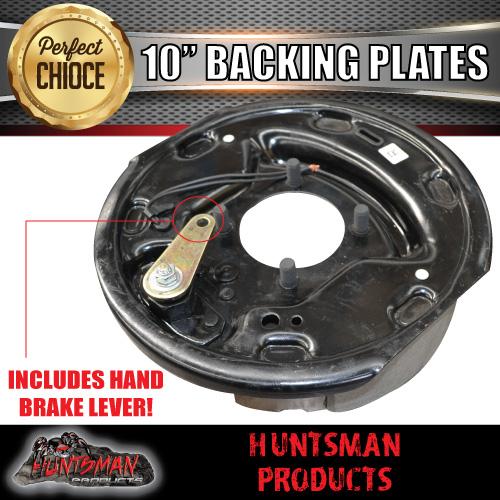

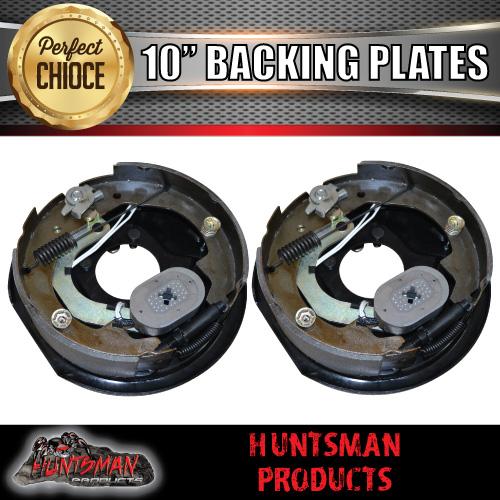

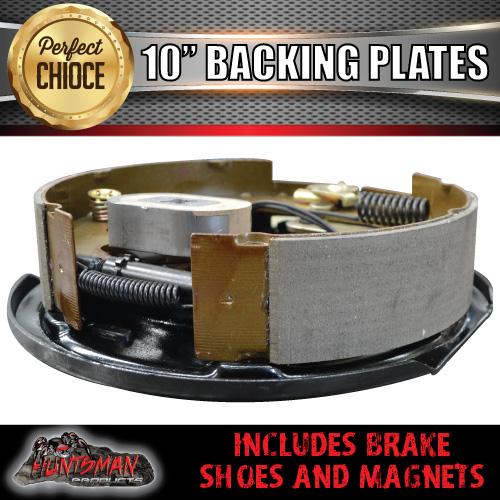

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

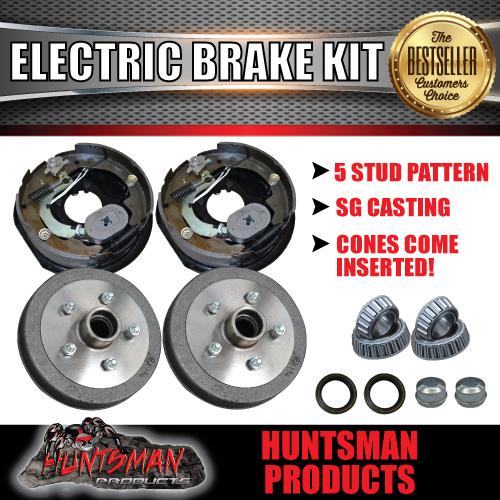

2X 10" HUB DRUMS (AVAILABLE IN 6 STUD LANDCRUISER OR D40/NP300, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HT OR 5 STUD HQ)drums made from S.G casting (Much stronger than grey iron)
drums come with cups already inserted
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X ELECTRIC BRAKE MOUNTS (PLEASE SPECIFY THICKNESS OF AXLE eg 39MM ROUND, 40MM SQUARE, 45MM SQUAREetc)
1X TEKONSHA IQ BRAKE CONTROLLER

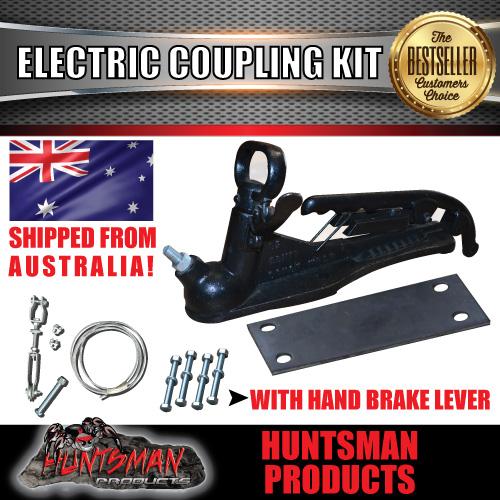

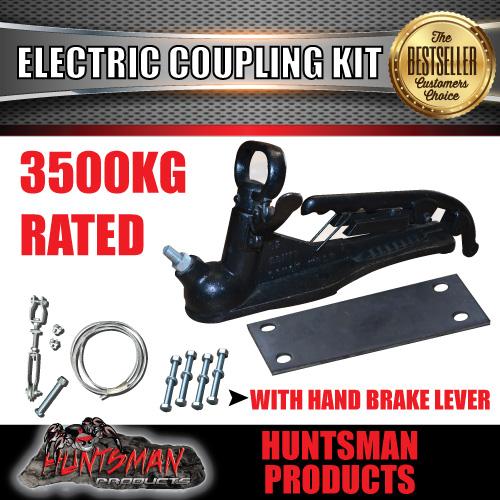

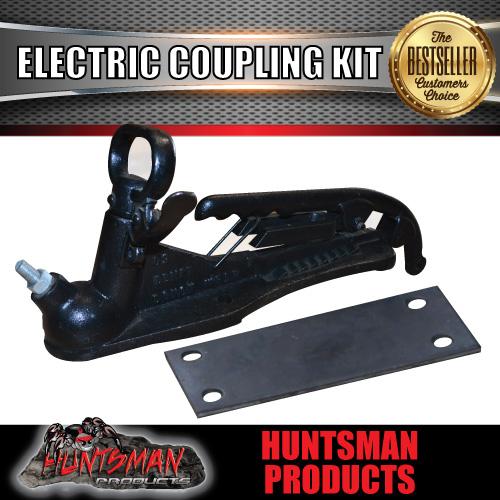

1X 3500KG ELECTRIC BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS
4 HOLE BASE PLATE
8M HANDBRAKE CABLE
2X CABLE CLAMPS
BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $40.0
"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
- BEARING STYLE (LM OR SL)
- STUD PATTERN
- WIDTH OF AXLE
BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49
FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49
STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"
HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches
COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches
HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches
5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
6 STUD D40/NP300
--- PCD: 6x114.3mm
--- Stud Thickness: 1/2" Inches
