10" JOCKEY WHEEL. SWING UP. SOLID WHEEL. 1000kg rated

The all new Heavy Duty 10" Jockey Wheel

OFF ROAD STYLE SOLID TYRE

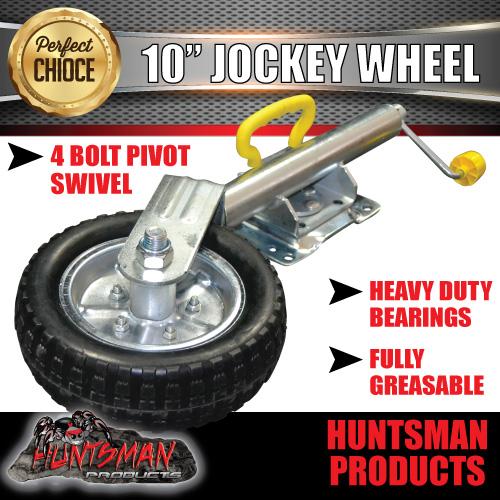

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm A- Frames)

5MM FORK

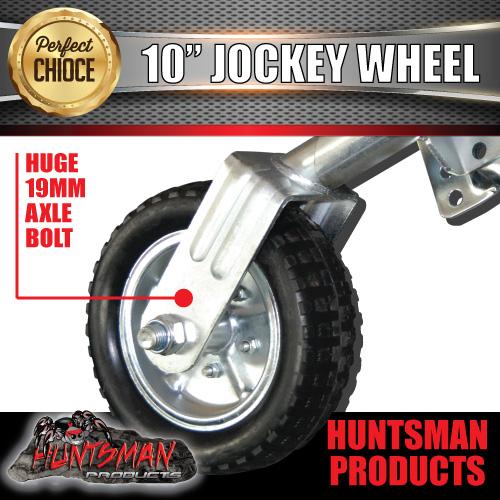

HUGE 19MM AXLE BOLT

PLASTIC HANDLE

PLASTIC HAND GRIP

CAN BE WELDED OR SUPPLIED WITH U-BOLTS

SOLID OFF ROAD TYRES

250MM EXTENSION

TYRE WIDTH: 80MM

height from centre of bracket to bottom of tyre

fully closed 420mm

fully extended 680mm

Height from middle of bracket to top of handle: 215mm

Overall Length closed: 630mm

Travel: 260mm

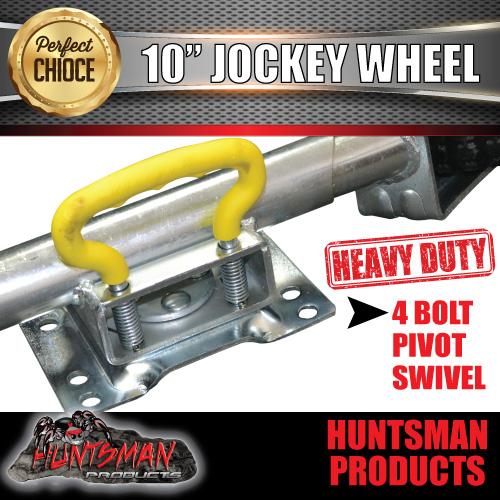

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY

RATED AT 1000KG (BALL WEIGHT)

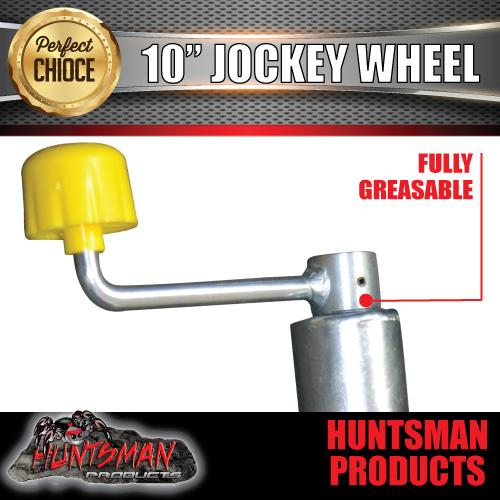

NOW FULLY GREASABLE
